Products

Addressable Fire Alarm Systems

1. Addressable fire alarm control panels and annunciators

Fire alarm control panels

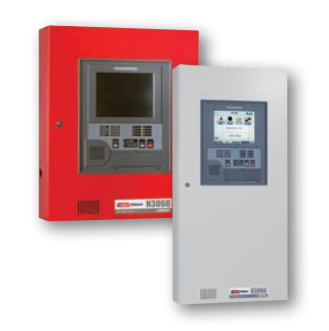

[1] N3060
  • - 1 to 12 loops per FACP
  • - 127 or 255 addresses per loop selectable
  • - Max. 3,060 addresses per FACP
  • - 10.4 inch color touch screen
  • - MAX. 64 nodes per network
  • - NFPA Class A, B, and X (Style 4, 6, and 7)for SLC
  • - 4 NACs, 6.0A in total (optionally expandable up to 16A with an additional power supply unit)
  • - 4,000 events history buffer
  • - 110 to 240V, 50/60Hz for AC universal input
  • - 12Ah to 65Ah back up battery capacity
  • - UL listed

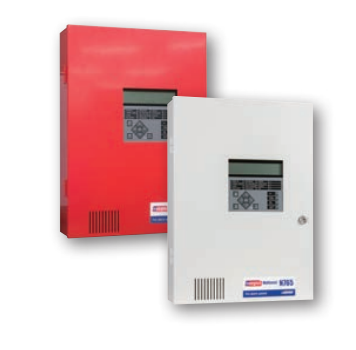

[2] N765
  • - 1 or 3 loops per FACP
  • - 127 or 255 addresses per loop selectable
  • - Max. 765 addresses per FACP
  • - 160 characters LCD (40 letters x 4 lines)
  • - MAX. 64 nodes per network
  • - NFPA Class A, B, and X (Style 4, 6, and 7) for SLC
  • - 2 NACs, 5.0A in total
  • - 4,000 events history buffer
  • - 100 to 240V, 50/60Hz for AC universal input
  • - 7Ah to 40Ah back up battery capacity
  • - UL listed
Annunciators
[1] LCD-type remote annunciator,
FIRU009-R-LCD
  • - 40 letters x 4 lines LCD
  • - 11 status LEDs
  • - Key lock switch to protect system control switch operation
  • - 6 system control switches
  • - Built-in buzzer
  • - 24VDC for rated operating voltage
  • - UL listed
[2] LED-type remote annunciator,
FIRU009-R-LED
  • - 16 zones status indicators
  • - 6 system status LEDs
  • - Key lock switch to protect system control switch operation
  • - Built-in buzzer
  • - 24VDC for rated operating voltage
  • - UL listed
[3] LED driver module for mimic panel,
PCA-N3060-LDM
  • - 32 LED driver outputs for zone status indications
  • - Consecutive or random zone number assignment available
  • - Audible alarm device (Built-in buzzer)
  • - Power supply status LED and signal transmission status LED
  • - 24VDC for rated operating voltage
  • - UL listed

2. Analog addressable fire detectors

Analog photoelectric smoke detector, FDKU033-D & FDKU033-D-X
  • - Very low profile (28.7mm/1.13 inch only in height)
  • - Wide alarm set-point range 5.1 to 11.0 %/m (1.57 to 3.50 %/foot)
  • - True analog detector
  • - UL listed smoke calibration and sensitivity
  • - IP42
  • - Simple and accurate address setting without mechanical switches
  • - LEDs for 360° viewing
  • - 22.0 to 24.OV for working voltage range of SLC
  • - UL listed (UL268 7th Edition)
Analog fixed temperature heat detector, FDLU019-D-X
  • - Very low profile (30.7mm/1.21 inch only in height)
  • - 57°C to 85°C (135°F to 185°F) heat sensor
  • - True analog detector
  • - Ambient temperature listing of 0°C to 66°C (32°F to 150°F)
  • - Simple and accurate address setting without mechanical switches
  • - LEDs for 360° viewing
  • - 22.0 to 24.OV for working voltage range of SLC
  • - UL listed
Analog rate-of-rise/fixed-temp. combination heat detector, FDHU003-D-X
  • - Very low profile (30.7mm/1.21 inch only in height)
  • - 57°C to 79°C (135°F to 174°F) heat sensor
  • - True analog detector for fixed temperature
  • - Rate-of-rise feature
  • - Rate-of-rise operates when the temperature increases 7°C to 8°C (12°F to 15°F) per minute occurs
  • - Simple and accurate address setting without mechanical switches
  • - LEDs for 360° viewing
  • - 22.0 to 24.OV for working voltage range of SLC
  • - UL listed

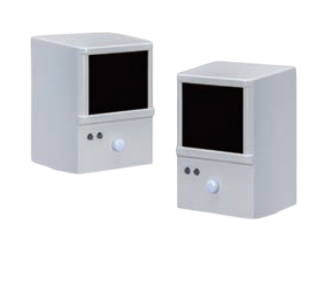

Analog photoelectric projected beam smoke detector, FDGJ002-D-X
  • - Wide and high coverage within 100m distance
  • - Sensitivity drift compensation for contamination or a slight shift in the optical system
  • - Light synchronized system to prevent false alarms
  • - Simple optical axis setting
  • - Simple and accurate address setting without mechanical switches
  • - 24VDC for rated operating voltage of SLO

3. Addressable detector bases

2-terminal base, FZBU013-2Z
  • - Standard 2-wire detector base
  • - UL listed (UL268 7th Edition)
4-terminal base, FZBU013-4Z
  • - Standard 2-wire system with remote indication circuit
  • - UL listed (UL268 7th Edition)
Isolator base, FZBU005-AIB
  • - Short circuit isolator integrated in detector base
  • - Self-restoring
  • - Optional locking tab to prevent unwanted removal
  • - 22.0 to 24.OV for working voltage range of SLC
  • - UL listed (UL268 7th Edition)
Sounder base, FZBU005-ASB
  • - Integrated sounder in detector base
  • - Sound output at 75 dB (UL 464 listed)
  • - Sounder independent of detector
  • - May be mapped to any device connected to the control panel
  • - Simple and accurate address setting without mechanical switches
  • - Optional locking tab to prevent unwanted removal
  • - 22.0 to 24.OV for working voltage range of SLC
  • - UL listed (UL268 7ih Edition)

4. Addressable Modules

UL Listed Addressable Modules

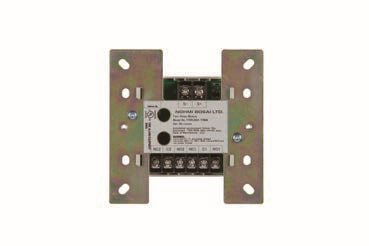

Twin relay module
Twin Relay Module, FRRU004-TRM4
  • Dry contact addressable module
  • Two typical form C dry contacts at 24VDC 2A, 125VAC 0.5A
  • One simple LED for status indication
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed
Miniature contact module
Miniature Contact Module, FRRU004-MCM
  • Input signal addressable module, mini-size
  • NFPA Class B (Style B) for IDC
  • 5.1KQ, 1/2W end-of-line resistor for IDC
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed

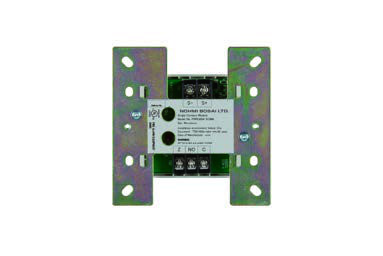

Single contact module
Single Contact Module, FRRU004-SCM4
  • Input signal addressable module
  • One simple LED for status indication
  • NFPA Class B (Style B) for IDC
  • 5.1kQ, 1/2W end-of-line resistor for IDC
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed
Dual contact module
Dual Contact Module, FRRU004-DCM4
  • Input signal addressable module, two inputs
  • One simple LED for status indication
  • NFPA Class A (Style D) and Class B (Style B) for IDC
  • One address in Class A, two addresses in Class B for IDC
  • 5.1KQ, 1/2W end-of-line resistor for IDC in Class B
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed

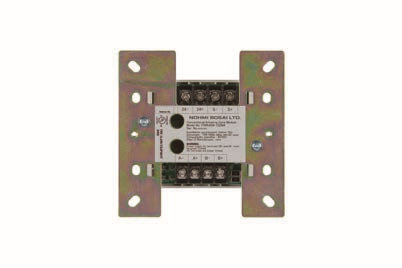

Conventional initiating zone module
Conventional Initiating Zone Module, FRRU004-CIZM4
  • Addressable module for conventional detectors
  • One simple LED for status indication
  • NFPA Class A (Style D) and Class B (Style B) for IDC
  • 15.7 to 22.6V output voltage range of DC
  • 5.1KQ, 1/2W end-of-line resistor for IDC in Class B
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed
Monitored output module
Monitored Output Module, FRRU004-MOM4
  • Wet output addressable module
  • One simple LED for status indication
  • NFPA Class B (Style Y) for NAC
  • UL listed with potter/Amesco®, GENTEX®, and Cooper Wheelock® syncro-modules and devices
  • 24VDC, 2A rating for connected device power (releasing device and NAC)
  • 5.1KQ, 1/2W end-of-line resistor value for notification appliance
  • 5.1KQ, 1/2W with diode, end-of-line device for releasing device
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed

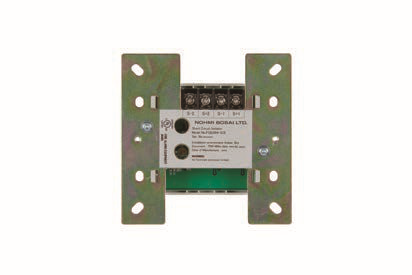

Short circuit isolator
Short Circuit Isolator, FQIU004-SCI
  • One simple LED for status indication
  • Self-restoring LED indication
  • 22.0 to 24.0V for working voltage range of SLC
  • UL listed
Analog input module
Analog Input Module, FRRU004-AIM
  • One simple LED for status indication
  • Monitors the analog input of 4 to 20mA
  • 0.5A rating for connected device
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed
Gas suppression control unit
Gas Suppression Control Unit, FRRU004-GSCU
  • Field control unit for gas suppression systems
  • Two addresses
  • Programmable NAC, DI (discharge Indicator), abort, and manual release circuits
  • NFPA Class B (Style B) for IDC and Class B (Style Y) for NACs and DI
  • 2 NACs and 1 DI, 3.0A in total
  • 5.1kQ, 1/2W end-of-line resistor for IDC and NACs and DI
  • Equipped with changeover switch (Auto & Manual or Manual only) and countdown timer
  • Status LEDs for power input, changeover switch, abort, manual release, trouble, suppression disabled, pre-discharge, discharge
  • 22.0 to 24.0V for working voltage range of SLC
  • Simple and accurate address setting without mechanical switches
  • UL listed
Japan Standard Addressable Modules

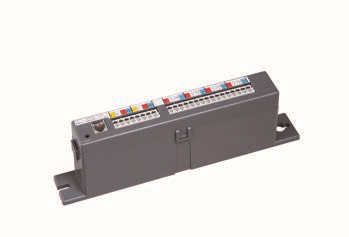

Wet output module 4-circuit
Wet Output Module 4-Circuit, 1 Address, FRRJ001A-Y-S
  • 1 address with 4 circuits
  • Return signal per circuit for device activation confirmation
  • Circuits applicable to input signals
  • 2A maximum voltage output per circuit
  • Dry typical form A contact for return signal
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit

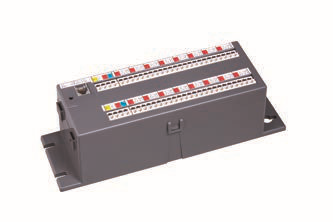

Wet output module 16-circuit
Wet Output Module 16-Circuit, 4 Address, FRRJ001-Y-4S
  • 4 addresses with 16 circuits
  • Return signal per circuit for device activation confirmation
  • Circuits applicable to input signals
  • 2A maximum voltage output per circuit
  • Dry typical form A contact for return signal
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit

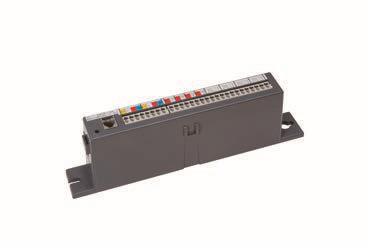

Dry contact module 4-circuit
Dry Contact Module 4-Circuit, 1 Address, FRRJ001A-Y-SS
  • 1 address with 4 dry contacts and 4 inputs
  • Return signals or input signals available
  • Dry typical form A contact at 30VDC, 2A railing
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit
Dry contact module 8-circuit
Dry Contact Module 8-Circuit, 2 Address, FRRJ001-Y-2SS
  • 2 addresses with 8 dry contacts and 8 inputs
  • Return signals or input signals available
  • Dry typical form A contact at 30VDC, 2A railing
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit
Dry contact module 16-circuit
Dry Contact Module 16-Circuit, 4 Address, FRRJ001-Y-4SD
  • 4 addresses with 16 dry contacts
  • Dry typical form A contact at 30VDC, 2A railing
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit

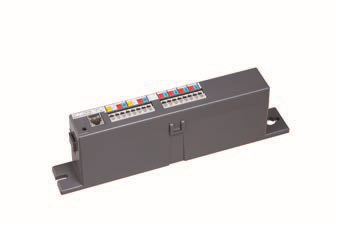

Addressable module for initiating device 4 address
Addressable Module for Initiating Device 4 Address, FRRJ001-Y-4F
  • 4 consecutive addresses per unit
  • NFPA Class B (Style B) for IDC
  • MK-G conventional fire detectors compatible
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit

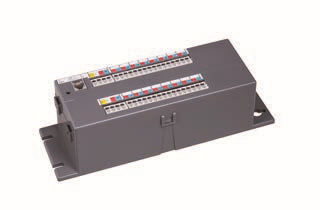

Addressable module for initiating device 16 address
Addressable Module for Initiating Device 16 Address, FRRJ001-Y-16F
  • 16 consecutive addresses per unit
  • NFPA Class B (Style B) for IDC
  • MK-G conventional fire detectors compatible
  • 24.0V for rated operating voltage of SLC
  • Simple and accurate address setting without mechanical switches
  • Slim unit

5. System Monitoring Program

System monitoring program, CNI016N
  • - Max. 195,840 addresses configurable per SMP
  • - Max. 64 nodes available on network
  • - Remote monitoring of networked system via VPN
  • - Max. 1,000,000 symbols available per SMP
  • - DXF & BMP data applicable to floor plans
  • - Group functionality same as FACP
  • - Current event list
  • - Event log for up to 50,000 events per SMP
  • - Analog value trend indication
  • - Sensor monitoring
  • - 4 system control switches
  • - Designed for Microsoft Windows 8 and 10
System interface unit, CSC004
  • - NFPA Styles 4 and 7 wiring applicable
  • - Max. 64 nodes available on network
  • - Max. length between two nodes as
    600m for copper/metal cable, 2,000m
    for 50/125 fiber optic cable, 1,700m for
    62.5/125 fiber optic cable, and 5,000m
    for 9/125 fiber optic cable
  • - Status LEDs
  • - 110V and 240V for AC universal input

6. Address setting unit

FZAW004-P
  • - Electric address setting compatible with all MK-G addressable devices

Conventional Fire Alarm Systems

1. Conventional fire alarm control panels and annunciators

Fire alarm control panels
5 zones without telephone system, FAPN202-R-5L
  • - Dedicated 5 zones fire alarm system
  • - Simple fire alarm functionality
  • - Various test functions
  • - Self-diagnosis system
  • - Mis-operation inhibit function
  • - Built-in surge arrestor for power lines
  • - Back-up power supply (Ni-Cd battery)
  • - 220V, 50/60Hz for AC input
10 and 20 zones with telephone system, FAPN105N series
  • - 10 and 20 zones fire alarm system available
  • - Various test functions
  • - Self-diagnosis system
  • - Mis-operation inhibit function
  • - Built-in surge arrestor for power lines
  • - Built-in telephone system
  • - Fire zone indication by both zone plates and digital display
  • - 1,000 event log
  • - Functions programmable at site
  • - Back-up power supply (Ni-Cd battery)
  • - 220V, 50/60Hz for AC input
30 to 100 zones with telephone system, FAPN104N series
  • - 30 to 100 zones fire alarm system available
  • - Various test functions
  • - Self-diagnosis system
  • - Mis-operation inhibit function
  • - Built-in surge arrestor for power lines
  • - Built-in surge arrestor for power lines
  • - Built-in telephone system
  • - Fire zone indication by both zone plates and digital display
  • - 25 programmable dry contacts
  • - 10,000 event log
  • - Functions programmable at site
  • - Back-up power supply (Ni-Cd battery)
  • - 220V, 50/60Hz for AC input
Annunciators
5 zones without telephone system, FIPN203-S-5L
  • - Dedicated to 5 or less 5 zones fire alarm system
  • - Zone plate indication with red LEDs
  • - Audible device (electronic buzzer) equipped
10 to 100 zones with telephone system, FIPN103 series
  • - 10 to 100 zones fire alarm system applicable
  • - Zone plate indication with red LEDs
  • - Built-in telephone system
  • - Audible device (electronic buzzer) equipped

2. Conventional fire detectors

Conventional spot type smoke detectors
FDK series - FDK246N, FDK246, FDK246-X
  • - Very low profile
  • - 2-wire system
  • - 24VDC for rated operating voltage
  • - Small monitoring current of 45uA
  • - Remote indication circuit available (FDK246-X)
FDKU634-D-X
  • - Very low profile (28.7mm/1.13 inch only in height)
  • - 2-wire system
  • - Wide range input voltage 15.0 to 28.8VDC
  • - High air velocity rating
  • - LEDs for 360° Viewing
  • - Sensitivity check by flashing LED
  • - IP42
  • - Remote indication circuit available
  • - UL listed (UL268 7th Edition)
Conventional projected beam smoke detector, FDGJ series - FDGJ103-D-X & FDGJ203-D-X
  • - Wide and high coverage within 100m distance
  • - Sensitivity drift compensation of contamination or a slight shift in the optical system
  • - Light synchronized system preventing false alarms
  • - Simple optical axis setting
  • - Optical remote test switch for easy maintenance
  • - 24VDC for rated operating voltage
Conventional rate-of-rise heat detector, FDPJ series - FDPJ106-D, FDPJ206-D, FDPJ206-D-T, FDPJ206-D-M, FDPJ206-D-X etc.
  • - Low profile
  • - 2-wire system
  • - Rate-of-rise operates when the temperature increases 10°C (FDPJ106), 15°C (FDPJ206 series) per minute occurs
  • - Remote testing mechanism available (FDPJ206-D-T)
  • - Response lamp holding circuit available (FDPJ206-D-M)
  • - Remote indication circuit available (FDPJ206-D-X)
  • - 30VDC 75mA for contact ratings
Conventional fixed temperature heat detector, FDLJ series - FDLJ906-D-65, FDLJ906-DW-65, FDLJ106-DW-X75, FDLJ106-DW-S75 etc.
  • - 65°C or 75°C operating temperature
  • - 2-wire system
  • - Physical protector equipped
  • - Alarm response lamp (LED)
  • - Water proof type available (FDLJ906- DW-65, FDLJ106-DW-X75, FDLJ106- DW-S75)
  • - Remote indication circuit available (FDLJ106-DW-X75)
  • - Dry contact circuit available (FDLJ106- DW-S75)
  • - 30VDC 75mA for contact ratings (62mA for FDLJ106-DW-S75)

Flame Detectors

1. Flame detectors and control panels

Non-explosion proof type flame detector
[1] IR3 flame detector, PDCJ001-D
  • - Infrared three-wavelength flame detector (with testing function)
  • - Non explosion proof type
  • - 24VDC for rated operating voltage
  • - Dustproof and waterproof (equivalent to "IP66")
  • - Horizontal and vertical 90° angle view for detection (the angle at which the monitoring distance is 1/2 to the front direction)
  • - Equipped with self-diagnosis function
  • - High sensitivity (33cm2 normal heptane flame detector at 60m front distance)
  • - Reliable fire detection CO2 resonance radiation principle, operation on flickering flame
  • - Approximately 3 seconds for delay time (changeable by setting)
[2] Addressable IR3 flame detector, FDCJ004-D
  • Infrared three wavelength spot type flame detector(with testing function)
  • Non explosion proof type
  • 24VDC for rated operating voltage
  • Dustproof and waterproof (equivalent to "IP66")
  • Equipped with self diagnosis function
  • High sensitivity
  • Reliable fire detection CO2 resonance radiation principle, operation on flickering flame
  • - Long monitoring range Max. 25m (50° from the center) to max. 45m (0° from the center)
  • - Wide viewing area 100° (50° in all directions from the center line of the detector downward to the floor)
  • - The Japanese standard approved product
[3] Conventional flame detector, FDCJ002-D-X
  • - Infrared type flame detector
  • - CO2 resonance radiation principle, operation on flickering flame
  • - 2-wire system
  • - 13 to 20m monitoring distance
  • - 100° angle view for detection
  • - With remote indication circuit
  • - 24VDC for rated operating voltage
  • - The Japanese standard approved product
Explosion proof type IR3 flame detector, PDCJ002-E
  • - Infrared three-wavelength flame detector (with testing function)
  • - Explosion proof type Exde II CT5 (Body: Explosion proof type, Terminal: Increased safety)
  • - 24VDC for rated operating voltage - Dustproof and waterproof (equivalent to "IP66")
  • - Horizontal and vertical 90° angle view for detection (the angle at which the monitoring distance is 1/2 to the front direction)
  • - Equipped with self-diagnosis function
  • - High sensitivity (33cm2 normal heptane flame detector at 60m front distance)
  • - Reliable fire detection CO2 resonance radiation principle, operation on flickering flame
  • - Approximately 3 seconds for delay time (changeable by setting)
Dedicated control panel for flame detector
PAPJ002-R-4/8/12L(-P) for PDCJ001-D
  • - 4, 8, and 12 zones or 75°C operating temper
  • - 2-wire system
  • - Physical protector equipped
  • - Alarm response lamp (LED)
  • - Water proof type available (FDLJ906- DW-65, FDLJ106-DW-X75, FDLJ106- DW-S75)
  • - Remote indication circuit available (FDLJ106-DW-X75)
  • - Dry contact circuit available (FDLJ106- DW-S75)
  • - 100V#10%, 50/60Hz for AC input
  • - 30VDC 75mA for contact ratings (62mA for FDLJ106-DW-S75)
  • - Japanese notation
FPI012B-1L~5L-A, -D for PDCJ002-E
  • - 1 to 5 zones (IR3 flame detector 1 unit / zone)
  • - Wall mounting, Indoor type
  • - (FPI012B-1L~5L-A) 100V10%, 50/60Hz for AC input (FPI012B-1L~5L-D) 24V#10% for DC input
  • - Japanese notation

Aspirating smoke detection system

Conventional aspirating smoke detector

Protecview FDNA002-R
  • - Super-high to low level sensitivity from 0.001 to 20.0%/m
  • - Total scattered light detection principle
  • - Large flow rate fan
  • - Bar graph smoke density indicator
  • - Contact output (alarm, trouble)
  • - Smoke density analog output (4-20mA)
  • - 24VDC or 100 VAC for rated input voltage
  • - Stand-alone system product

Others

1. Notification appliances

Fire alarm bells - FBM01U-D, FBM023, FBM023-D, FBW013-EA
  • - Motor driven type alarm bell
  • - High sound output with low current consumption
  • - Low RFI noise
  • - Lead wire connection
  • - 24VDC for rated operating voltage
  • - Indoor, Outdoor type (FBM01U-D)
  • - Rainproof type available (FBWO13-EA)
  • - Polarized type available (FBM01U-D, FBM023-D)
  • - UL listed product available (FBM01U-D)
Strobe/Horn, NEC3-24WR
  • - Low profile
  • - Field selectable candela options of 15, 30, 60, 75, and 110
  • - NAC synchronization feature with MK-G Addressable FACPs or dedicated modules
  • - 24VDC for rated operating voltage
  • - UL listed
Strobe Light, S-24WR
  • - Low profile
  • - Field selectable candela options of 15, 30, 60, 75, and 110
  • - NAC synchronization feature with Nohmi Addressable FACPs or dedicated modules
  • - Instant voltage verification feature
  • - 24VDC for rated operating voltage
  • - UL listed
Horn, EH-24R
  • - Low profile
  • - NAC synchronization feature with Nohmi Addressable FACPs or dedicated modules
  • - Instant voltage verification feature
  • - 24VDC for rated operating voltage
  • - UL listed

2. Manual stations

Manual Push Button, FMMN, FMRN, FMBN series - FMMN102-U. FMMN102-UW.
FMMN202-U. FMRN102-U. FMBN102-U, FMBN102-UW
  • - Cutting-edge compact design
  • - Push-button-type
  • - Easy reset after operation
  • - Addressable and conventional types available
  • - 30VDC 500mA (FMMN & FMRN) for contact ratings
  • - Indoor and Outdoor types available
  • - Telecommunication means provided (except for FMMN202-U)
  • - Response lamp provided (except for FMMN202-U)
Pull Station, FMM01U series - FMM01U-SK2, FMM01U-SK1
  • - Single or dual action pull down activation
  • - Key reset
  • - 30VDC 1A or 125VAC 1A for switch contact ratings
  • - Terminal connectors
  • - Gold plated SPST and contacts
  • - High-gloss enamel finish
  • - Plastic break rod
  • - UL listed

3. Location lamps

FLPJ series - FLPJ002. FDPJ002-W. FLPJ004. FLPJ004-W
  • - Cutting-edge new design (FLPJ004, FLPJ004-W)
  • - Noticeable red color
  • - Low current and high durability
  • - Wide and high visibility
  • - Outdoor type available

4. Remote indicator lamps

FLL series - FLL061A-B, FLL061-C
  • - White cover plate and red LED with translucence lamp cover
  • - Two sizes available (70mm x 115mm and 65mm x 88mm)
  • - 50mA maximum rated current

5. Combination boxes

FWLN series
  • - Three-in-one composition (location lamp, manual push button, alarm bell)
  • - Cutting-edge new design
  • - Addressable and conventional available
  • - Surface and recess mountings available
  • - Easy installation and maintenance
  • - Indoor / Outdoor type available

6. Explosion proof devices

Manual station, FMEJ202-RG
  • - Flame proof and explosion proof product
  • - Exde Il CT6 for explosion class and ignition grade
  • - Location lamp equipped
  • - Applicable to both indoor and outdoor uses
  • - 24VDC for rated operating voltage
Fire alarm bell, EMB-6 DC24V
  • - Rain proof and explosion proof product
  • - Exd Il BT4 for explosion class and ignition grade
  • - 24VDC for rated operating voltage
Location lamp, EC2B-110
  • - Exde Il CT6 for explosion class and ignition grade
  • - 24V AC/DC rated operating voltage

7. Fire door closing devices

SLDJ004 series - SLDJ004-U-E, SLDJ004-U-M
  • - Latch type
  • - Electrical resetting type and manual resetting type available
  • - 24VDC for rated operating voltage

8. Lightning arrester units

FZL116 series - FZL116-E-40L-T (40 terminals), FZL116-K1-80L-T (80 terminals), FZL116-K1-120L-T
  • - 60VDC or less for max. permissible circuit voltage
  • - DC or not more than 150kHz for frequency band
  • - Impulse protection performance
  • * In common mode - Between a line and ground
  • ~ Initial max value 350V or less
  • ~ Max. value during operation 20V or less
  • * In normal mode - Between any two lines
  • ~ Initial max value 350V or less
  • ~ Max. value during operation 20V or less
  • - 20kA for impulse current (at impulse current waveform of 80/20uS)
  • - Japanese notation

9. Flame monitoring system

UVS-05BN, UVS-06CN
  • - Battery type (UVS-05BN) 24VDC wiring type (UVS-06CN)
  • - Ultraviolet detector
  • - Indoor type
  • - High sensitivity detection distance of 4m (About 3cm lighter flame in front of the detector)
  • - Detection within 15 seconds
  • - Wide viewing area (60° above and below the horizontal surface of the sensor, 50° to the left and right from the vertical surface of the sensor)
  • - Multilingual voice alarm (Japanese, English, Chinese, Korean)
  • - Sound level of 80dB or more (at 1m in front of the sensor)

10. Miscellaneous

Protector for heat & smoke detectors, FZP012-L
Telephone hand set, SC-PA1
Detector tester for heat detector, HK-3
  • Body, pole, bag and adaptor
  • Heating Cartridge selling separately
Detector tester (Gas type) for smoke detector, FTGW001-Z
  • Test gas selling separately
Detector tester for flame detector, FTEJ001-P
  • Recess mounting box
  • Powered by four AA batteries
  • Test distance within 20cm
  • 0°C ~ 40°C ambient temperature (except dewfall)
  • Compatible with FDCJ002-D-X
Detector tester for IR3 flame detector, FTEJ002-P
  • Recess mounting box
  • Powered by four AA batteries
  • Test by closed range
  • 0°C ~ 40°C ambient temperature (except dewfall)
  • Compatible with FDCJ004-D, PDCJ001-D
Sensitivity measuring unit. FTDJ001-P
  • Powered by four AA batteries
  • 0°C ~ 40°C ambient temperature
Pole for tester, ZERJ002-15, 45, 60 & ZEAJ001
  • Three size available (1.5m, 4.5m, 6.0m)
  • Compatible with HK-3, FTGW001-Z, FTEJ001-P, FTEJ002-P

Foam fire extinguishing systems

1. Low to medium expansion foam fire extinguishing system

Low Expansion Foam System
  • - Engineered System
  • - P, AFFF, AR-AFFF foam type available
  • - Low expansion foam system
  • - Foam head, Foam nozzle, Foam chamber, Foam monitor system
  • - Wide operating flow rate and less pressure loss proportioner available
  • - Wide range of capacity foam tank available
MIDEX III
  • - Self-contained manual type foam fire extinguishing system
  • - Indoor type
  • - AFFF foam type and S/AR foam type available
  • - Applicable fires: Class A and Class B fires
  • - Discharge distance
  • -Low expansion foam: Approx. 10m (at 20°C) Medium expansion foam: Approx. 5m (at 20°C)
  • - Hose length 20m
  • - Effective and fast-acting
  • - Easy manual switching between low and medium expansion foam
  • - Easy to use for a single person
  • - No need for plumbing or electrical works
  • - At least 70 seconds (at 20°C) for discharge time

Nitrogen Gas Fire Suppression Systems

1. Clean agent fire suppression systems and components

NN100 gas suppression system
  • - UL listed IG- 100
  • - Zero ozone depletion and zero global warming potential
  • - No carbon dioxide and no halocarbons
  • - Engineered type
NN100 package EX
  • - Compact package unit
  • - Zero ozone depletion and zero global warming potential
  • - No carbon dioxide and no halocarbons
  • - 220V to 240V#10%, 50/60Hz for AC input
  • - Maximum room volume covered by one storage cylinder
  • 49m3 for Class A fire
  • 39m3 for Class B and C fire
Noise reduction nozzle
  • - Pendant and sidewall type available
  • - Decreases impact on HDDs caused by the gas discharge noise
  • - Easily replace existing nozzles
  • - 90m¾min for nozzle flow rate
  • - Sound pressure level of 97dB (pendant type), 99dB (sidewall type) on 1m away at a 45° angle in front of the discharge point
Transparent gas discharge indicator
  • - Sophisticated design
  • - More visual impact when used Designed to not be noticed until needed
  • - Enhanced display for people with color- blindness
  • - Multi-lingual support (Displayable up to four languages)

2. Fire suppression system for object protection

750/1500/2250 CNF/TW
  • - Gas output at ambient temperature
  • - Non-pressurized nitrogen storage
  • - Discharge sound level: Less than 99dB with silencer (optional), 127dB without silencer
  • - No global warming potential
  • - Low pressure gas release
  • - Aspirating smoke detection (750/1500/ 2250 CNF) Linear heat detection (750/ 1500/2250 TW)
  • - 110/230V for AC input
  • - Flexible User Interface positioning
  • - Back-up battery: 4 hrs (750/1500/2250 CNF), 12 hrs (750/1500/2250 TW)
  • - Interconnectivity up to 8 systems
  • - Maintenance free
  • - No residue clean up
  • - Long shelf life
×
